High Precision Metal Fiber Laser Cutting System 600mmx400mm Super Flexible Optical Effects

Wuhan Huahai Century Laser Co., Ltd.
Contact Now

High Precision Metal Fiber Laser Cutting System 600mmx400mm Super Flexible Optical Effects

  • 1
  • 2

Brand Name : HUAHAI LASER

Model Number : HB-HC

Certification : CE , FDA Certificate

Place of Origin : CHINA

MOQ : ONE SET

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets per month

Delivery Time : 10-15 working days

Packaging Details : standard wooden case for export

Laser wave length : 1064nm

Laser source : Raycus or IPG or JPT

Working area : 600x400mm

Keyword : Fiber Laser Cutting Machiens

Function : Precision cutting for metal

After-sales service provided : Engineers available to service machinery overseas

Contact Now

Small Size Precision Metal Fiber Laser Cutting Machine with 600mmx400mm Factory Price



Machine Production:



1) Excellent beam quality: Smaller focus diameter and high work efficiency.

2) High cutting speed: Cutting speed is more than 20m/min

3) Stable running: Adopting the top world Raycus fiber lasers, stable performance,life 100,000 hours;

4) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption. Fiber line transmission no need reflect lens.

5) Easy operations: fiber line transmission, no adjustment of optical path.

6) Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.



Application Materials:



Used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy,galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.



Application Industries:



Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.



Technicial Parameters:





          Item Name

             Technical Parameter

   1

          Model

              HB-HC

   2

         Laser generator

               Raycus/JPT/IPG fiber laser

   3

         Laser power

               500W/750W 1000W

   4

         Laser wavelength

                 1064nm

   5

         Working area

                600mm*400mm

   6

         X axis travel

                 400mm

   7

         Y axis travel

                 600mm

   8

         Z axis travel

               Z axis travel 60mm

  9

         X Y Z axis repositioning accuracy

                ± 0.02mm

  10

         X Y axis max position speed

                 36m/min

  11

         X Y axis max acceleration

                  0.8 G

  12

         Max cutting speed

                 20m/min

  13

         Notch gap width

                 0.1-0.2 mm

  14

         Cutting accuracy

                 ±0.1mm

  15

         Installed capacity

                 8 KVA

16          Rated power voltage                220V/110V 50-60Hz

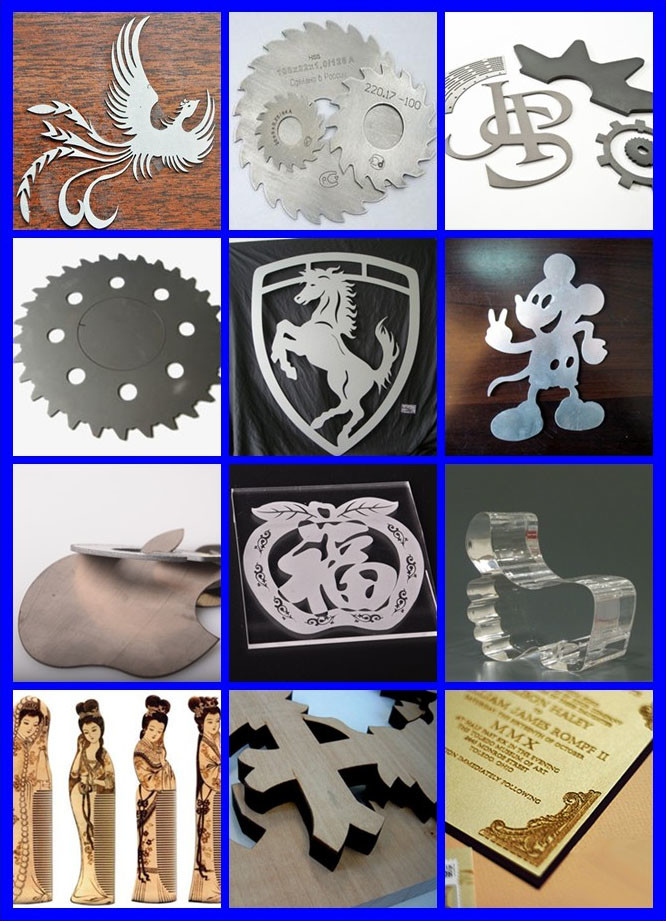

Cutting samples:



High Precision Metal Fiber Laser Cutting System 600mmx400mm Super Flexible Optical Effects
