250W Dynamic Focusing CO2 Laser Marking Machine For Yoga Mat Logo Printing
Introduction
CO2 Dynamic Laser Marking Machine is the ideal solution for marking, engraving and cutting paper, cardboard, yoga mat, genuine and fake leather, natural and artificial textile, denim, rubber, wood, acrylic LGP dots marking , acetates and organic materials on large are-as up to 1500*1500mm.
As the high-tech product, Dynamic CO2 Laser Marking Machine adopts the technologies of Laser, Optics, Precision Machinery, Electronic technology, PC software technology and Cooling Project.
The machine adopts the 10.64um CO2 laser source, which can satisfy the application in different industries such as marking, cutting, engraving, color removal, paint processing, material micro-processing and etc. The equipment adopts Aluminum frame structure, and the latest motor driving in the whole worktable platform to ensure the stable qualities. The adjustment of laser optical path is droven by two galvanometer motors(XY), and the third axis is droven by pre-scanning gathered system to make a wildly adjustment for focus distance.
Equipment Features
1, 3D Dynamic focus adjustment with large engraving worktable to present fast process speed on different materials with various thickness
2, USA imported CTI scanning system display high precision engraving performance and faster processing speed
3, Powerful software is capable for any drawing or halfone format, and especially suitable for continuous production for large quantities and various designs.
4, Specially designed software for LGP Laser dotting.
5, Automatic generation of dotting design
6, Automatic gradual changes with dots size and distance
7, Integrated function of dotting design, vector drawing, marking, scribing and cutting
8, Support different light Input directions and styles
9, Support informal LGP design and dotting Works
Technical Parameters
| Description | Configuration List |
| 250W 3D Dynamic Focus Co2 Laser marking and cutting Machine | Laser Wavelength | 10.64µm |
| Laser power | 250w |
| Laser tube | Orignal imported USA Coherent |
| Galvanometer | Original imported USA CTI |
| Power supply | AC220V/25A/50Hz |
| Laser frequency | 20-200kHz |
| Marking speed | 7000mm/s |
| Working area | 300*300mm to 800*800mm for option |
| Repetition precision | 0.01mm |
| Support files | AI, PLT, DXF, SDT, BMP, JPG, PNG, TGA, TIF, etc. |
| cooling way | water cooling |
| Control card and software | Professional Dynamic focusing Control software from Huahai Laser |
| Dynamic Group | Three-dimensional dynamic focus |
| Optical lens | U.S. import |
| Industrial control computer | High performance |
| power consuption | ≤3kw |
| Applicable material | leather,fabric,wood, bamboo, paper, acrylic, marble,etc. non metal material. |
| Package | Standard export wooden box |

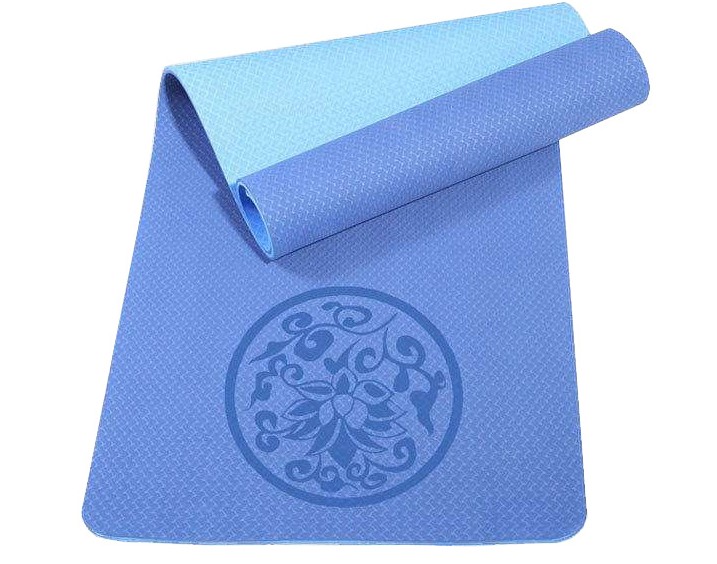

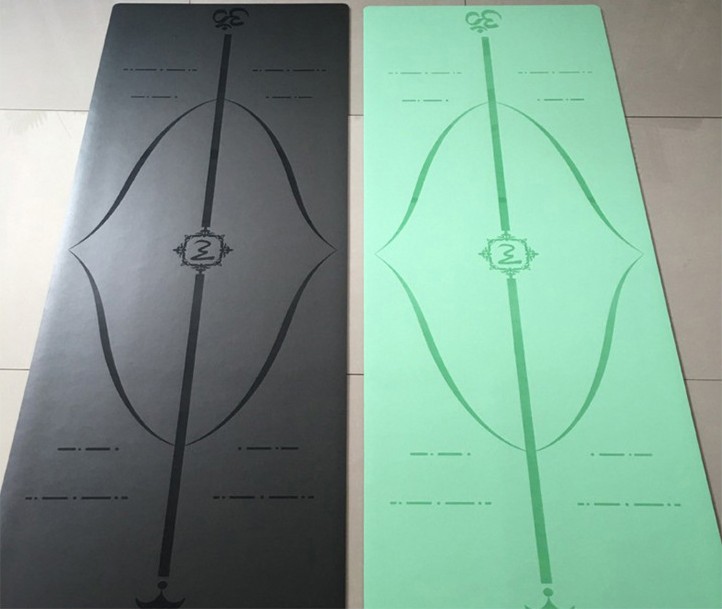

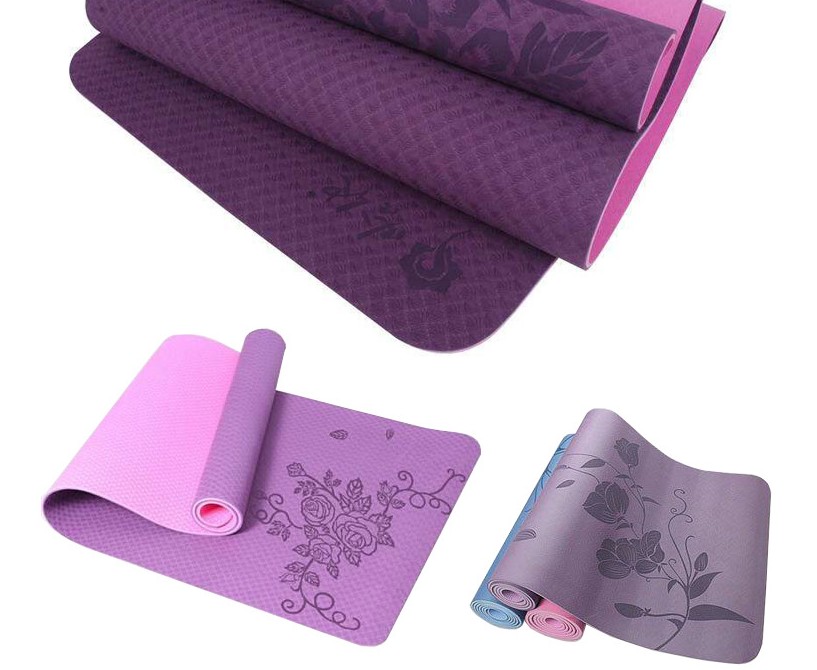

Samples Show
