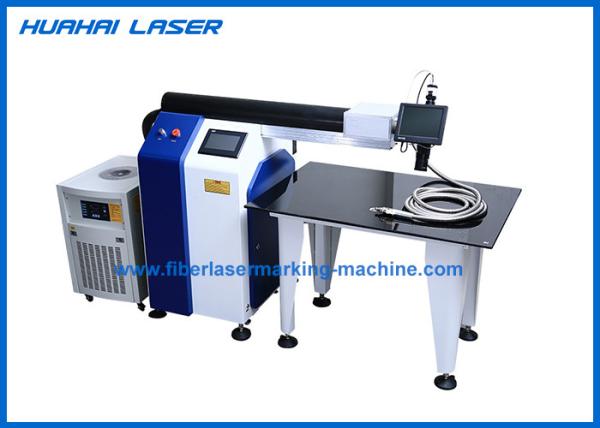

YAG Channel Letter Laser Welding Machine , Metal Laser Welding Systems

Wuhan Huahai Century Laser Co., Ltd.

YAG Channel Letter Laser Welding Machine , Metal Laser Welding Systems

  • 1
  • 2
  • 3

Brand Name : Huahai Laser

Model Number : HB-HW

Certification : FDA,CE

Place of Origin : Wuhan,China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100sets/month

Delivery Time : 10days

Packaging Details : Standard export wooden box packaging

Laser Source Brand : RAYCUS

Laser power : 300watts 400watts

Adjustment range of light spot : 0.1-0.3mm

Size of light spot : 0.2-3.0mm

Raw material : stainless steel,titanium,aluminum,steel

Warranty : 12 months

Contact Now

Advertisement YAG Channel Letter Laser Welding Machine For Aluminum Steel Stainless Steel Galvanised Sheet



Description:



1. Advertising word laser welding machine widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc, especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw.

2. The welder process of heat affected zone is small Welding spot size can be adjusted freely. Solder fine, smooth, beautiful, without too much welder post-treatment. Accurate positioning Welding speed, high quality, and high efficiency environmental pollution, the solder joints. Applicable gold, silver, platinum, stainless steel, titanium and so on many kinds of metal and alloy.



Advantages:



1. Suitable materials: stainless steel, steel plate, iron plate, galvanized sheet etc.
2. It can weld small and complex letters, it also can weld big letters about 2 meters.
3. It is easy to operate and fast to weld letters.
4. No black point on the surface of letters.
5. No noise and no pollution



Features:


1. Laser arm is 1.5 meters.
2. Marble table is smooth, heavy and stable, which is difficult to scratch letter surface.
3. Light path is dust proof to protect lens.
4. The specification of crystal bar is 7*145mm.
5. 1P water cooling system, it adopts Panasonic compressor. 14L volume, it is 304 s.s water tank.



Applications:



Channel letter laser welding machine is the application of high energy pulse laser welding. It's applied for the welding of various metal letters, LED illuminated letters, customized metal signage and outdoor billboards. Letters used in variety of metal Logo LED advertising characters, like stainless steel, aluminum, titanium, tin, galvanized sheet, iron, alloy, carbon steel etc.



Specifications:



Type HB-HW300 HB-HW400
Laser source Nd3+:YAG Rod
Rated power 300W 400W
Max. single-pulse energy 90J 120J
Total power 6KW 12KW
Power supply 220V, 40A 380V, 60A
50/60HZ compatible 50/60HZ compatible
Laser wavelength 1064nm
Facula diameter 0.30-3.0mm
Molten pool diameter 0.3mm-3mm
Pulse width 0.2ms-20ms
Pulse frequency 1-50Hz
Controlling system Single-chip microprocessor
Operation interface English
Observing system CCD
Locating system Infrared and locating rod
Working table scale 1000*750mm
3-axis itinerary X=700mm,Y=150mm,Z=200mm



Samples:



YAG Channel Letter Laser Welding Machine , Metal Laser Welding SystemsYAG Channel Letter Laser Welding Machine , Metal Laser Welding Systems



Tag: ad words laser welder, metal laser welding machine,yag laser welder
